TIAN POWER OEM 5KW Welder Portable Diesel Generator Diesel Generator Set

1 Set
MOQ
$700.00(1 - 4 Sets) $650.00(5 - 29 Sets) $600.00(30 - 71 Sets) $550.00(>=72 Sets)
Prijs
TIAN POWER OEM 5KW Welder Portable Diesel Generator Diesel Generator Set
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: Diesel Generator Set
Rated Voltage: 220V
Rated Current: 50-180A
Speed: 3000/3600rpm
Frequency: 50HZ/60HZ Optional
Engine: TP186FA
Alternator: SENCI
Type: Slient
Control panel: LED Display
Color: Customers' Requirement
Warranty: 1 Year
Product Name: Diesel Genertor
Options: Automatic Transfer Switch
Certificate: CE/ISO9001
Controller: digital
Basis informatie
Certificering: CE/ISO9001
Model Number: Diesel Generator Set
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
Product Description

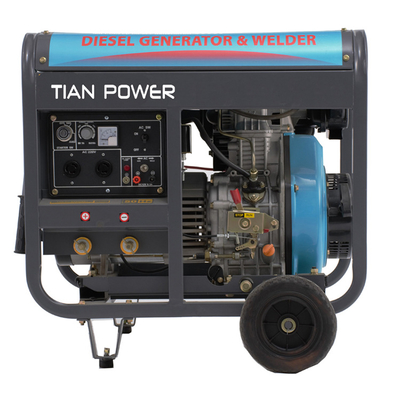

TIAN POWER OEM 5KW portable diesel welder generator

(OPEN TYPE)TP6500DGW
Rated frequency[Hz] 50/60
Rated voltage[V] 110/120/220/230/240
Rated current[A] 17.3/18.2
Rated output power[KW] 4.0/4.5
Max output power[KW] 4.5/5.0
Rated rotation speed[rpm] 3000/3600
Rated welding DC current(A) 180
Rated welding work voltage(V) 26
Welding load continuous ratio 40%
Current regulation range(A) 50-180
Power factor[cos@] 1.0
Phase number Single phase
Structure type Open-frame or slient type
Continuous running time(at rated load) 12 hours
Starting system E:electric start
Engine model Single cylinder,4-stroke,air-cooled,direct injection, diesel engine
Engine type TP186FA/E
Rated power[KW(Hp)/rpm] 4.0/3000 4.5/3600
Fuel 0#(summer) or 10#(winter)-20#(chillness) diesel
Lube CDgrade or SAE 10W-30,15W-40
Fuel tank Capacity (L[gal] 15
Overall dimension(LxWxH)[mm] 740x500x670
Dry weight[kg(lbs)] 115
1*20GP 102SETS

  • Wheels: Include
  • Battery: Optional
  • ATS: Optional
  • Three phase: Optional
  • Remote control: Optional
  • Digital panel: Optional
  • Hour counter; Optional

Our Services



2. Perfect air passage and inside design, make inside temperature very low with stable performance.

3. Diesel Generator use good brand components, give clients reliable quality.

4. Warranty time is 1 year, could supply spare parts for every mdoel since we are manufacturing factory.

5. The main features and advantages first lie in the soundproof material and technical application.

6. They are widely adopted by families, companies and other telecommunications.

FAQ

1 Q:What is the payment terms?

A: EXW, FOB SHANGHAI, CFR, CIF

2 Q: What is your MOQ of this item?

A: 1-10 sets

3. Q: Where is the loading port?

A SHANGHAI Sea port( our factory located in Shanghai,China)

4 Q: Is it all right to make customer's own brand name?

A: Sure, we can be your OEM manufacturer with your authorization of brand.

5 Q: What are your payment terms?

A: T/T 30% deposit,70% balance against the B/L copy For container order

100% T/T Advanced payment for sample orders

6 Q: How long is your warranty?

A: Guarantee for one year or 1000 hours (accord to whichever reach first) from Ex-Factory date.

7 Q:What is the delivery time?

A: 10~20 days after receiving your deposit according to production line is busy or free

8. Q: What is your company production capacity?

A: 7000 Sets per month against your orders
